Home / Technical / Designers Guide / Technical Reference (Page 1)
1. Introduction
2. Thermocouple Concept
3. Thermocouple Calibration

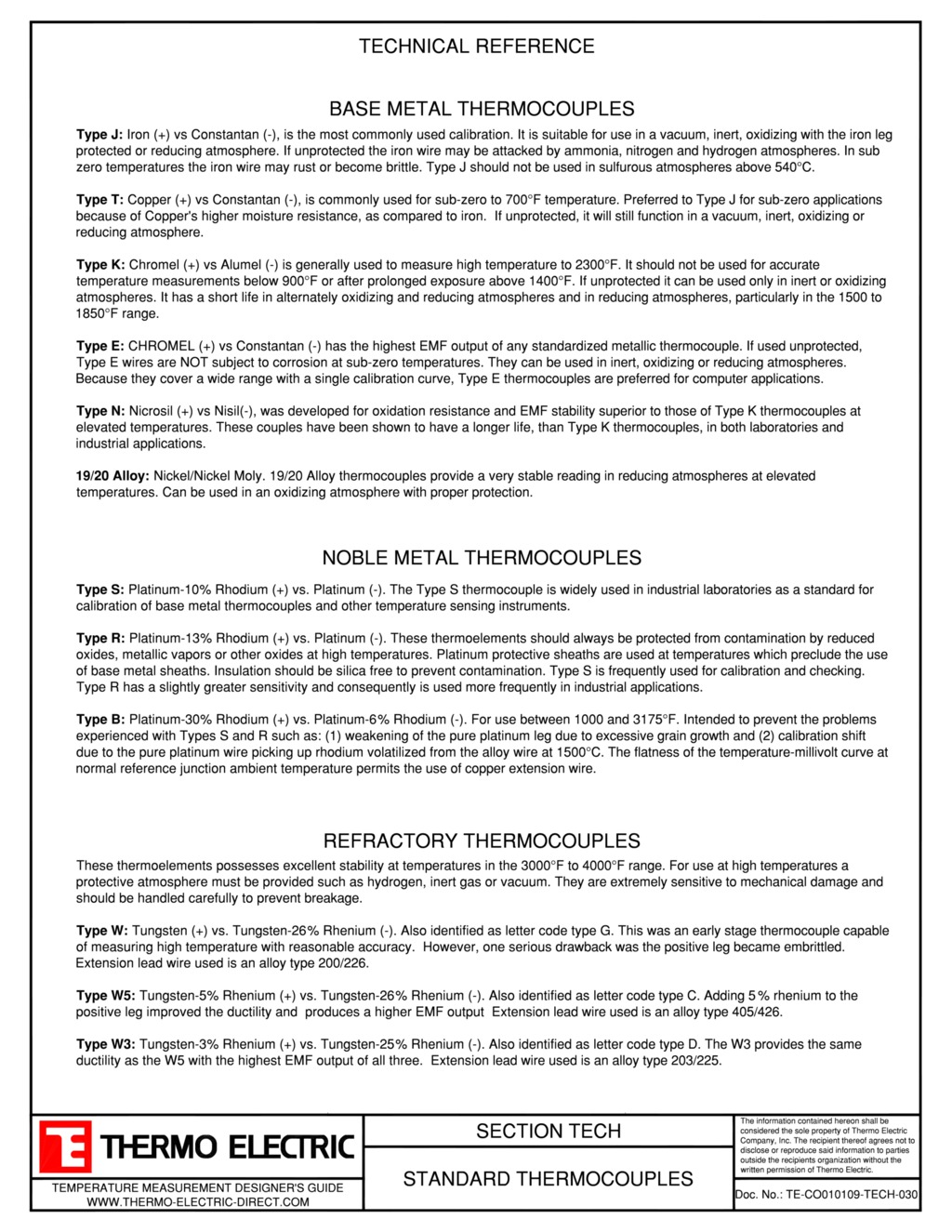

4. Standard Thermocouples

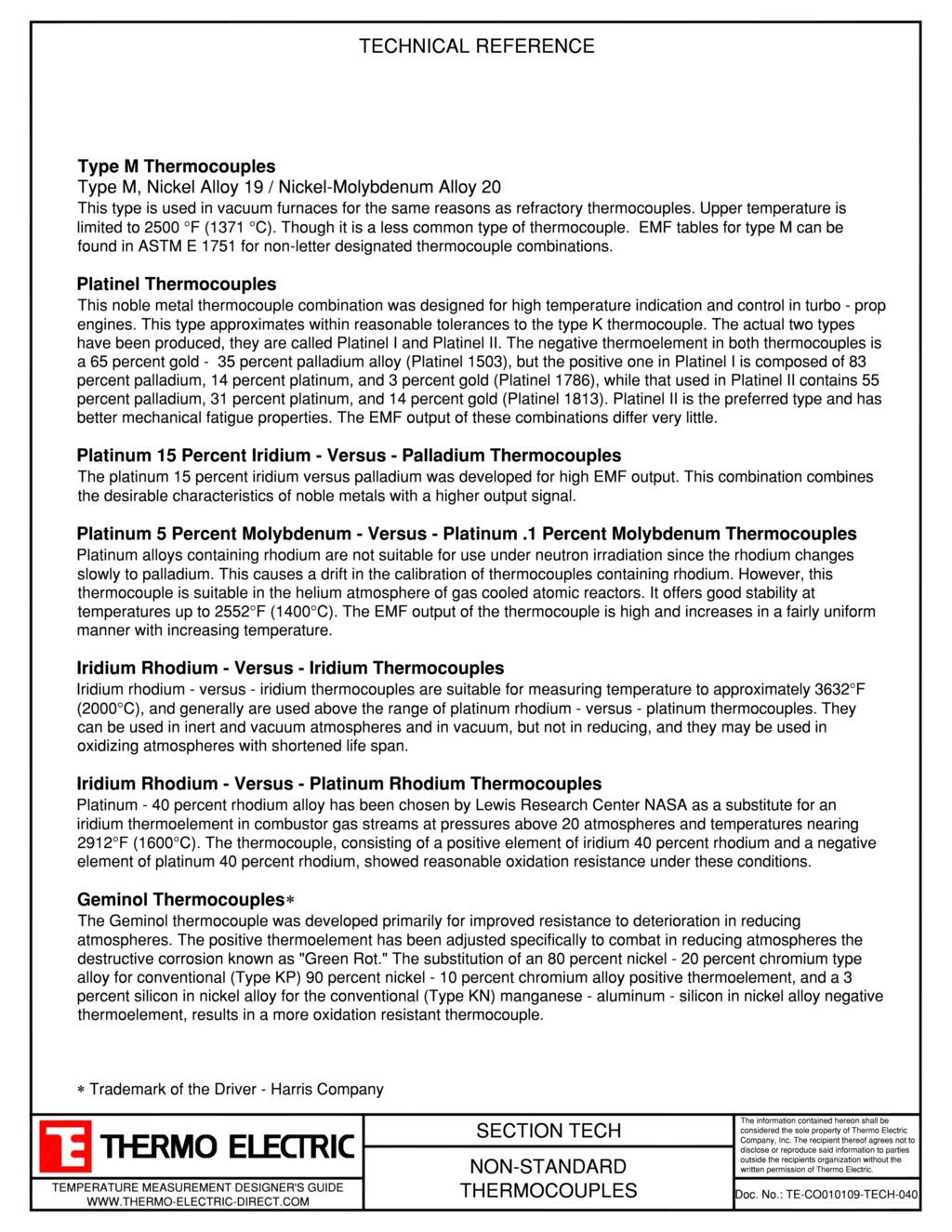

5. Non-standard Thermocouples

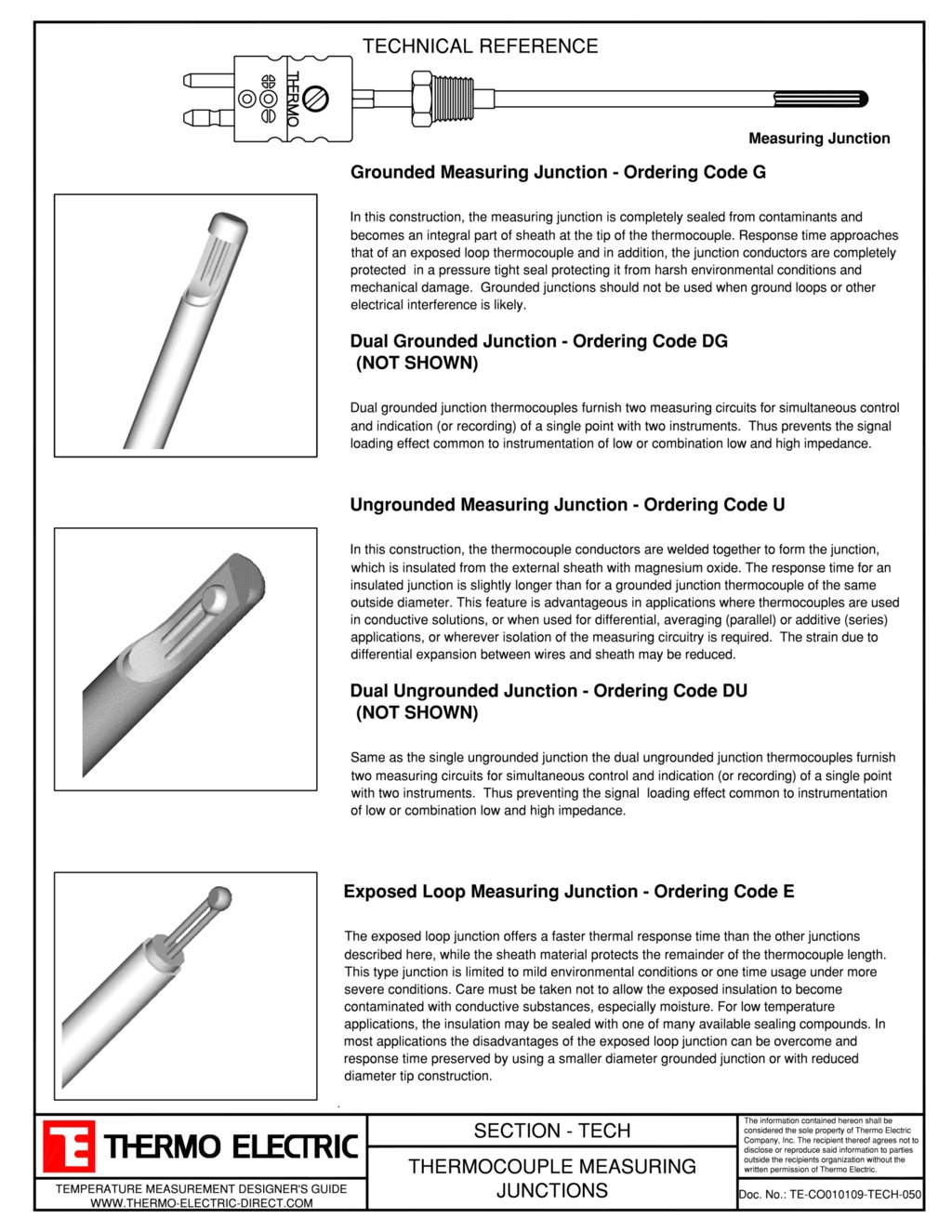

6. Thermocouple Measuring Junctions (Page 1)

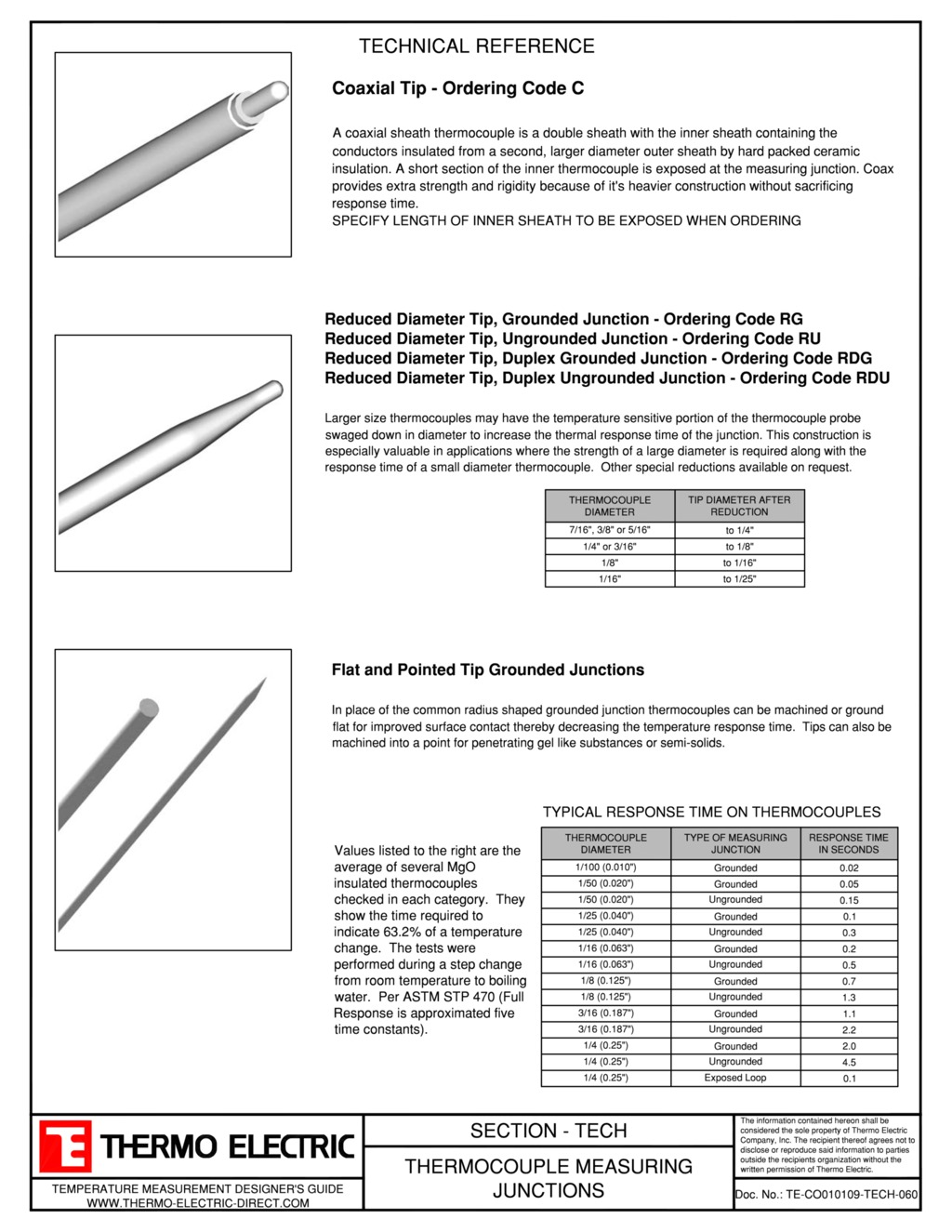

7. Thermocouple Measuring Junctions (Page 2)

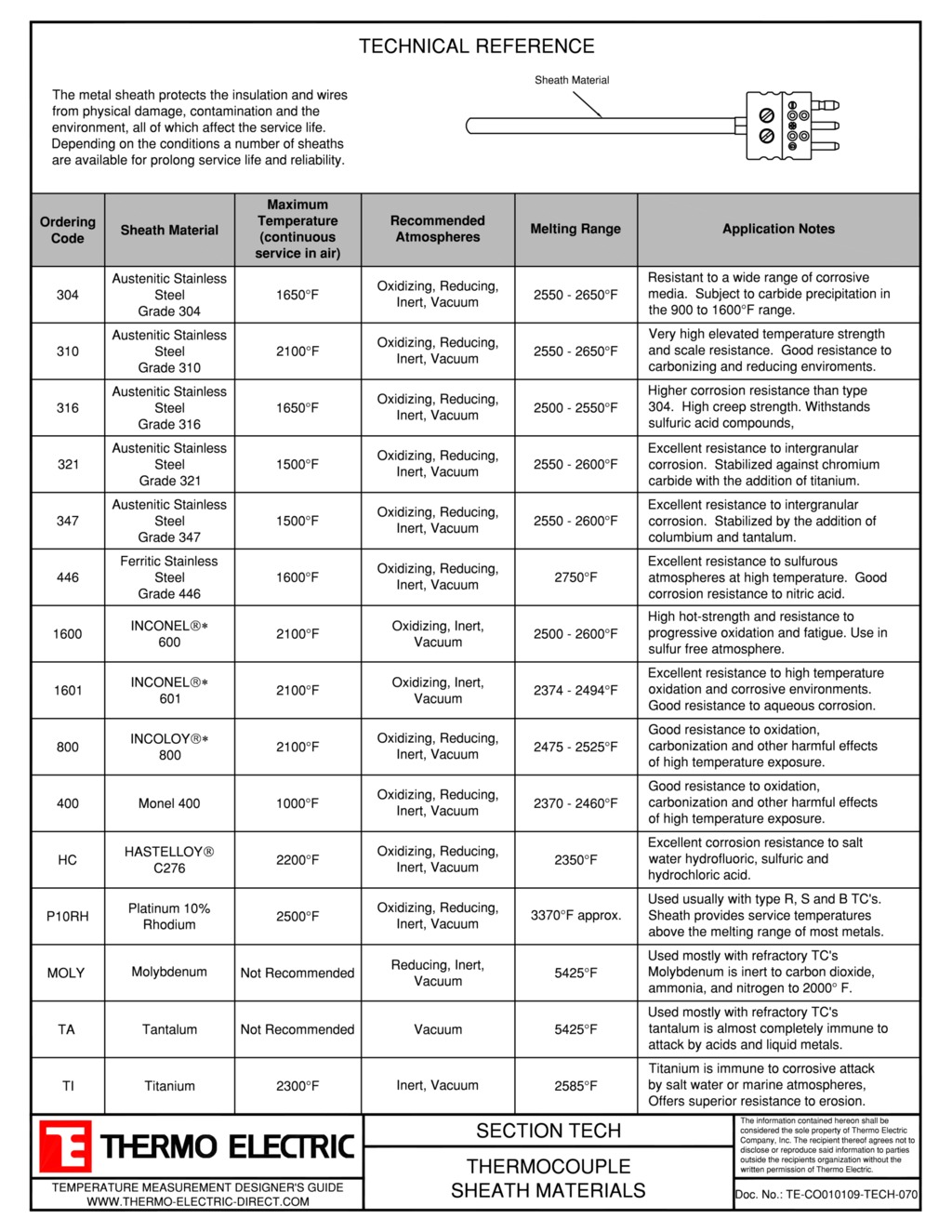

8. Thermocouple Sheath Materials

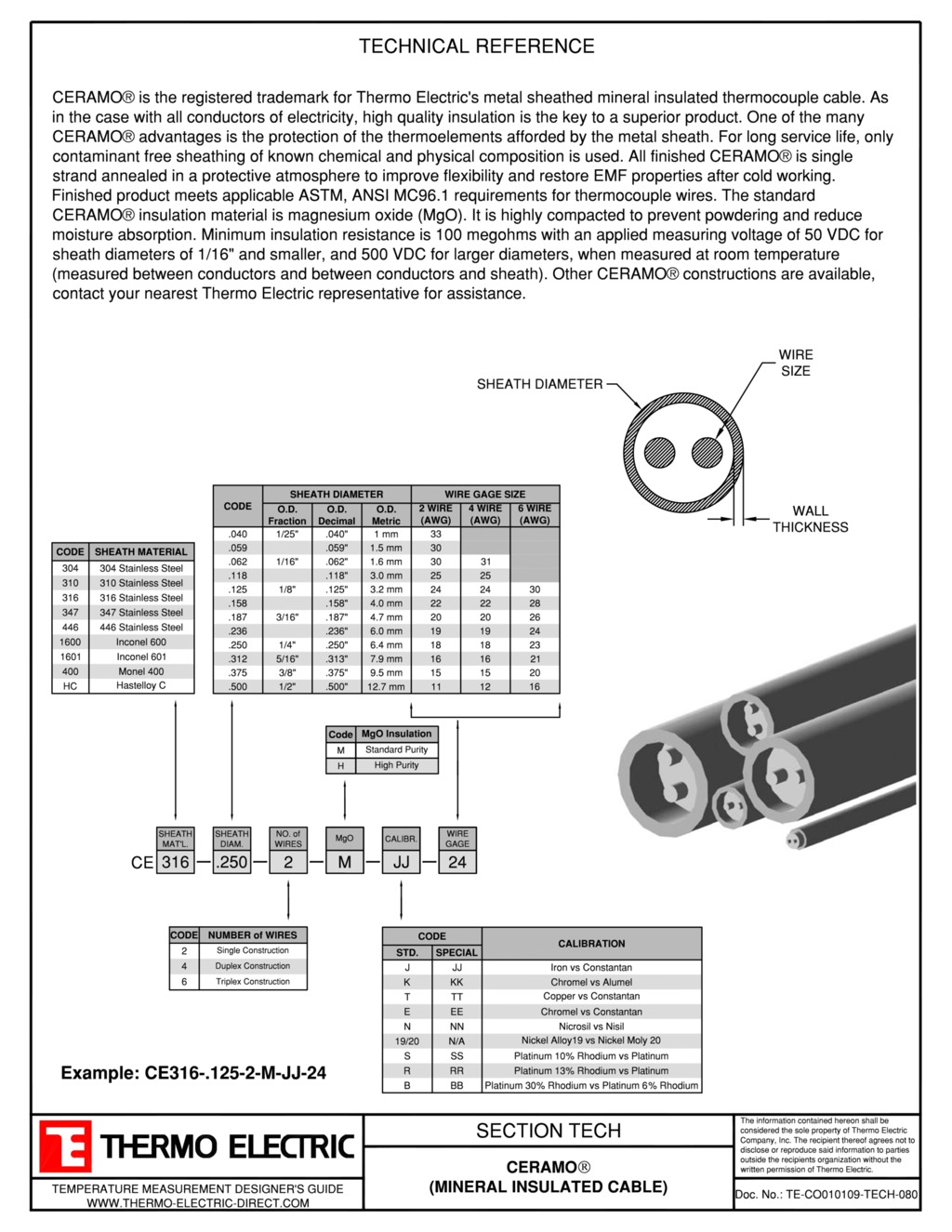

9. Ceramo (Mineral Insulated Cable) (Page 1)
10. Ceramo (Mineral Insulated Cable) (Page 2)

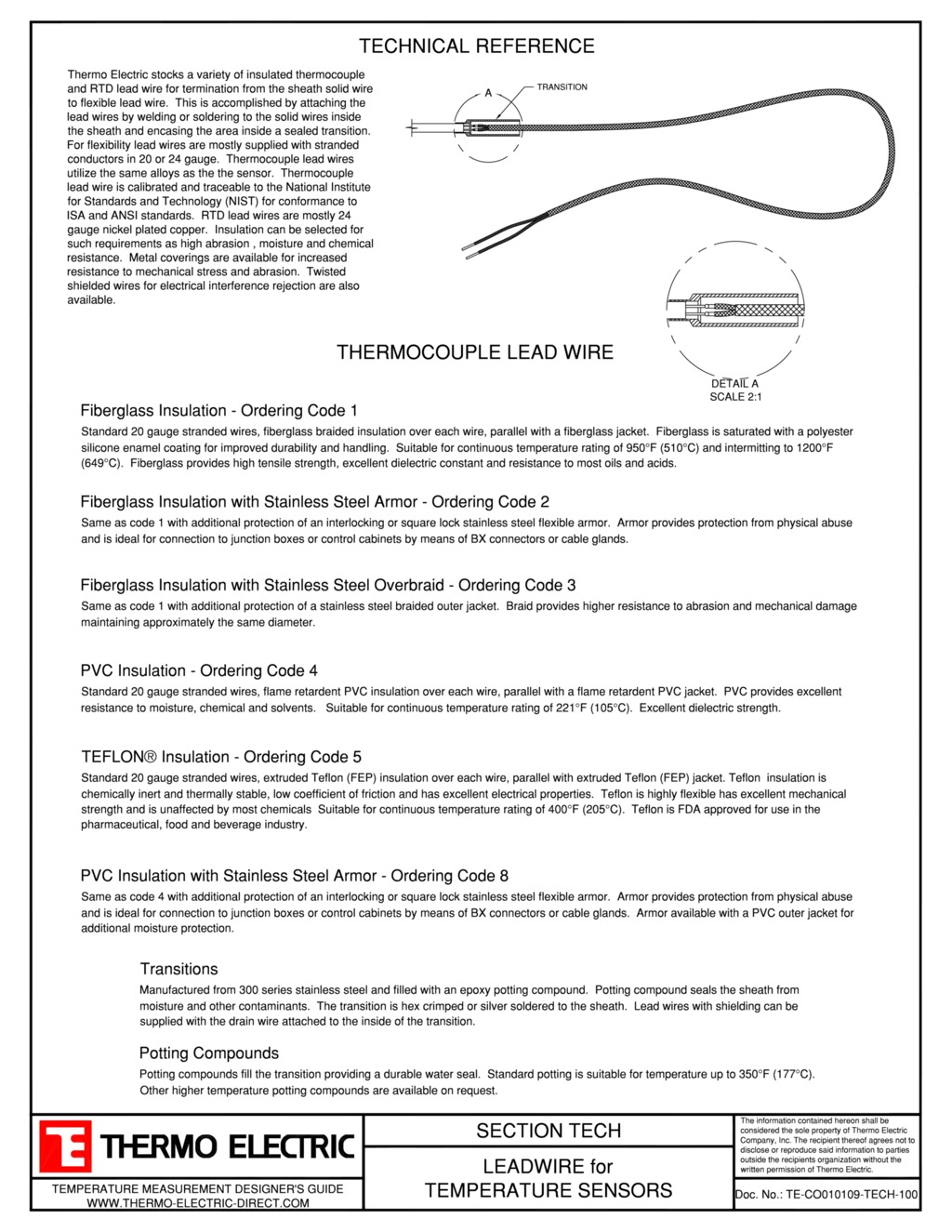

11. Lead Wire for Temp. Sensors (Page 1)

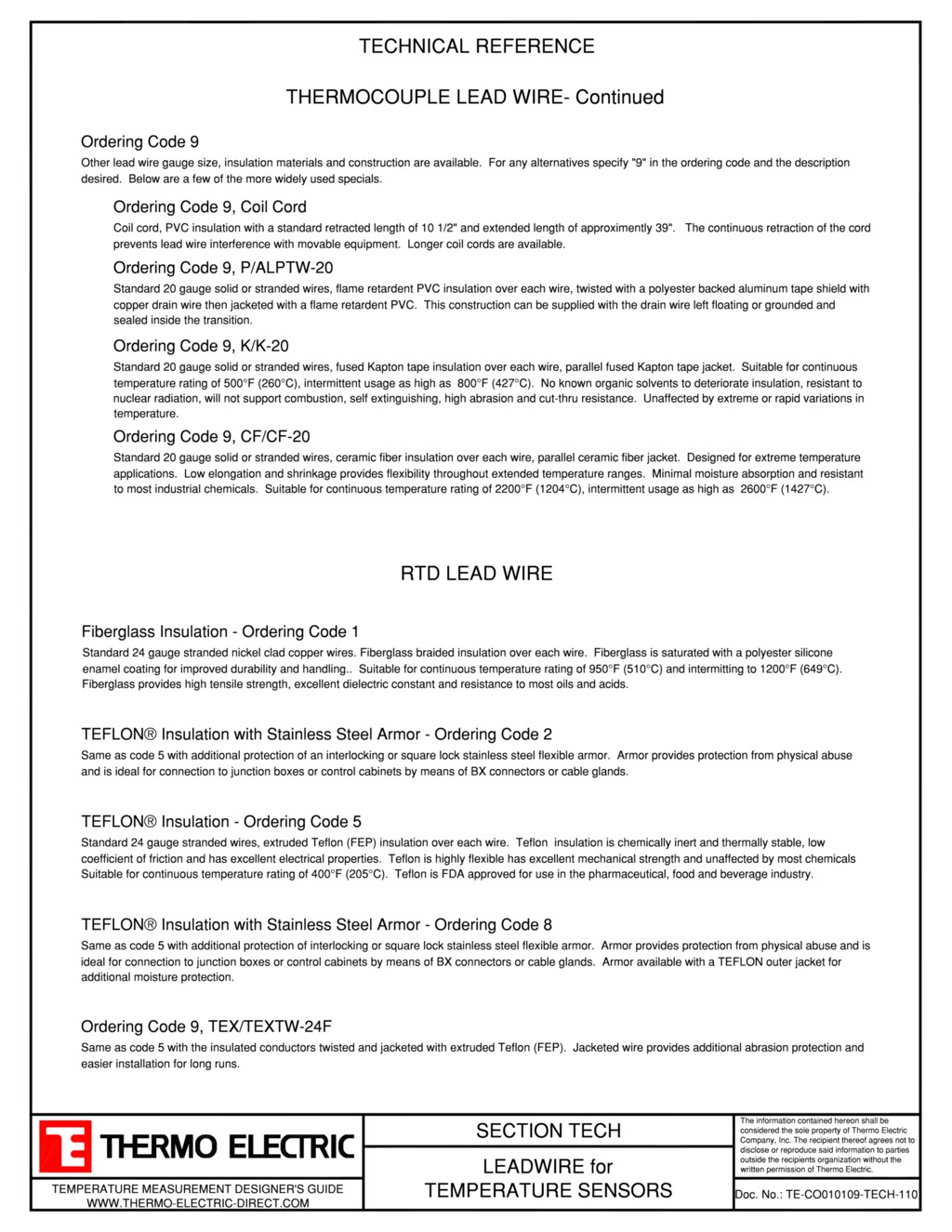

12. Lead Wire for Temp. Sensors (Page 2)

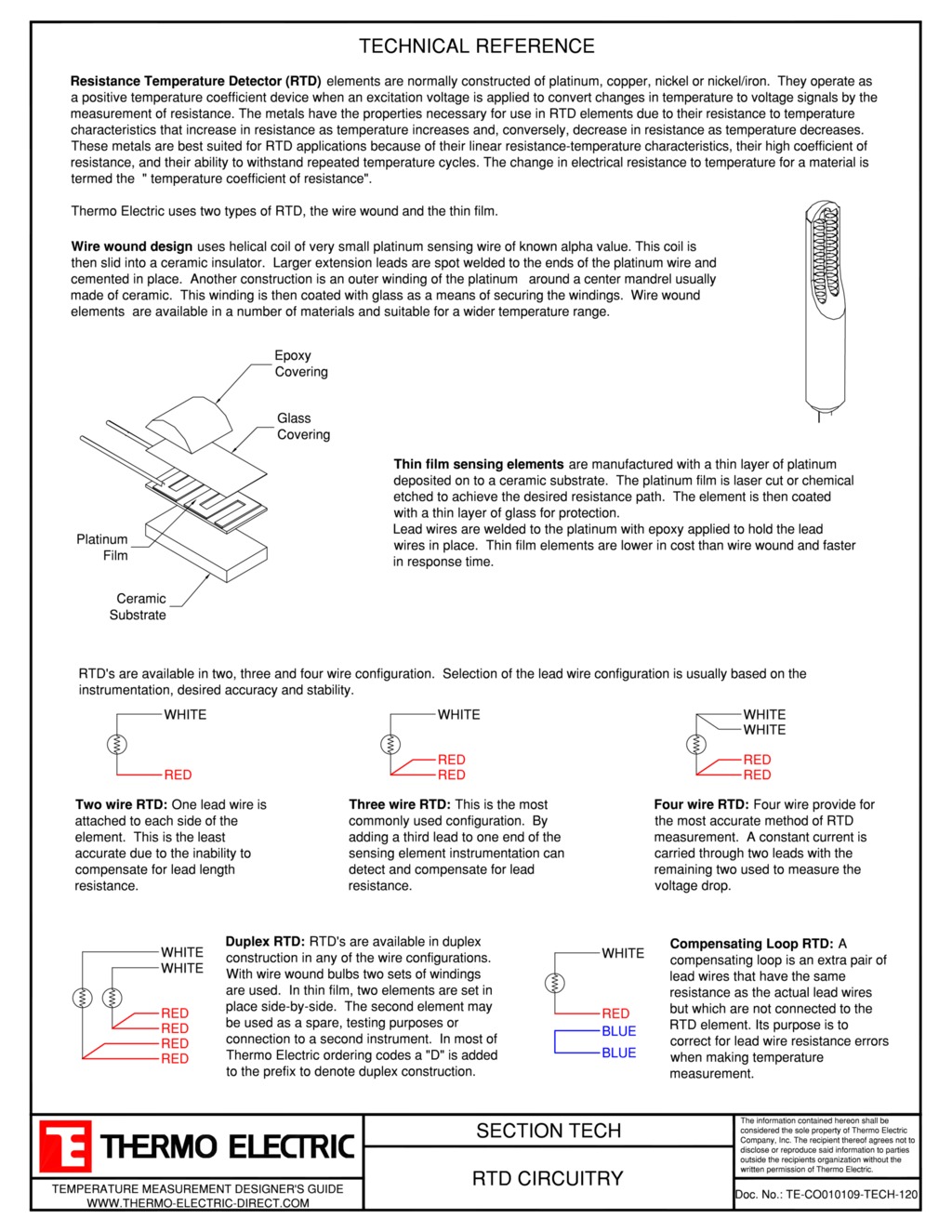

13. RTD Circuitry (Page 1)

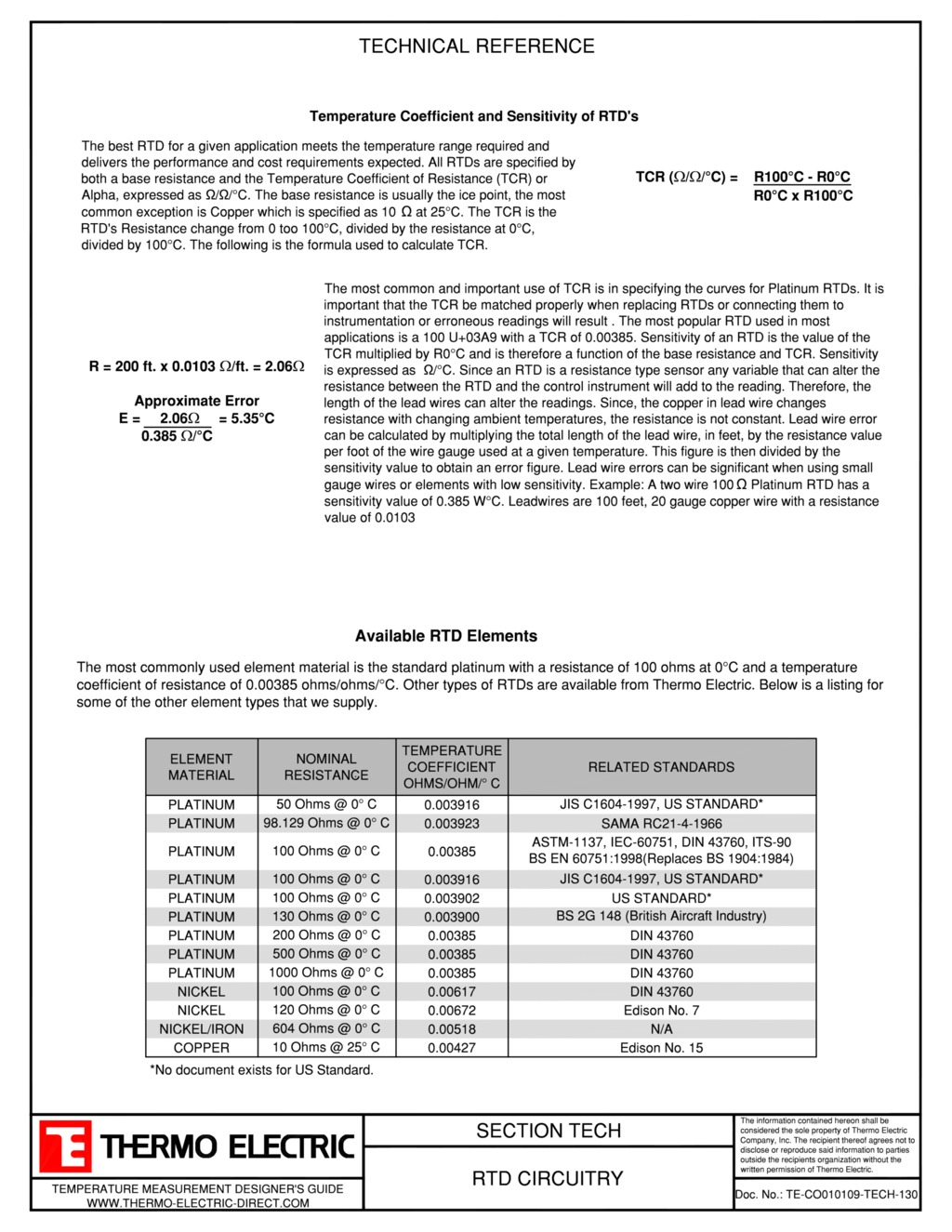

14. RTD Circuitry (Page 2)
15. RTD Circuitry (Page 3)
16. RTD Circuitry (Page 4)

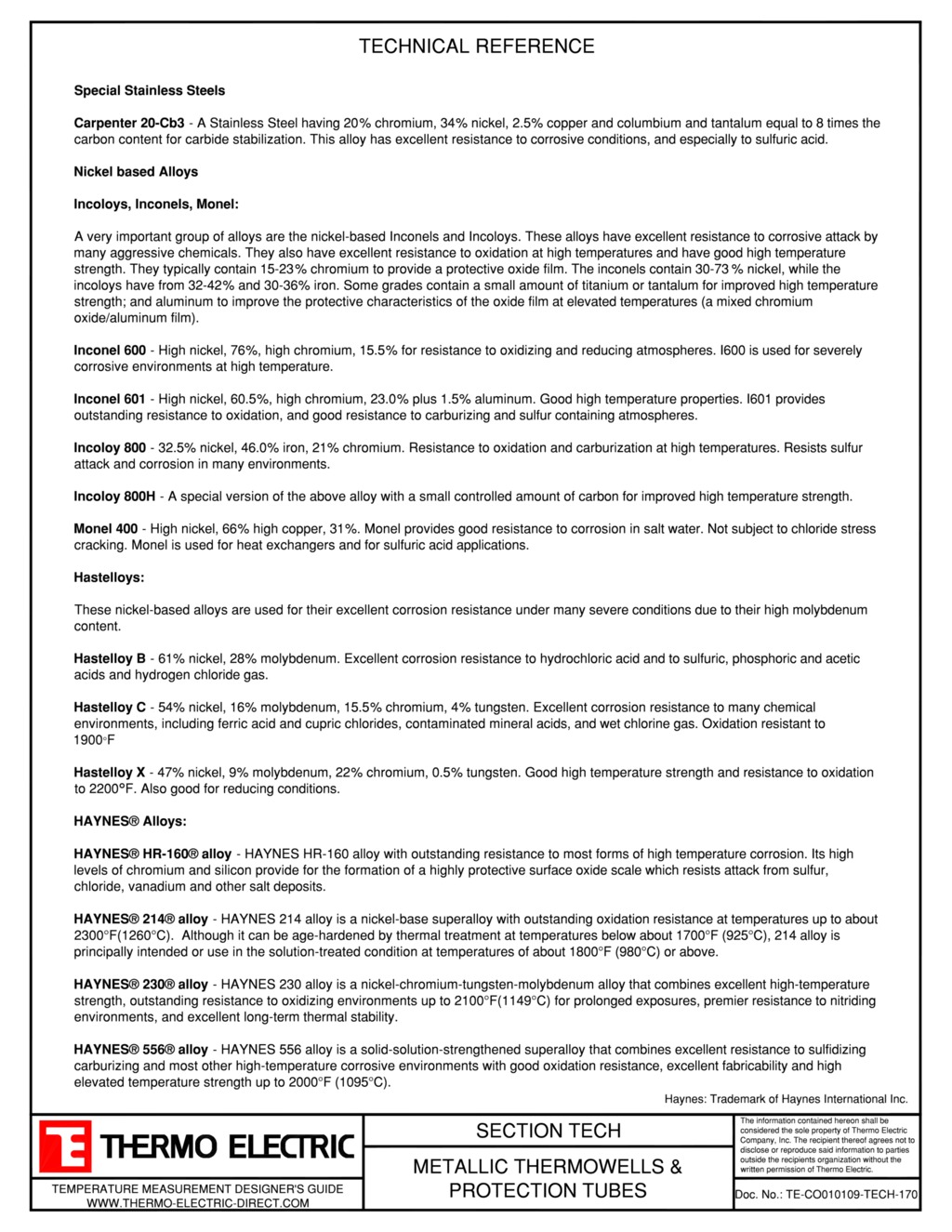

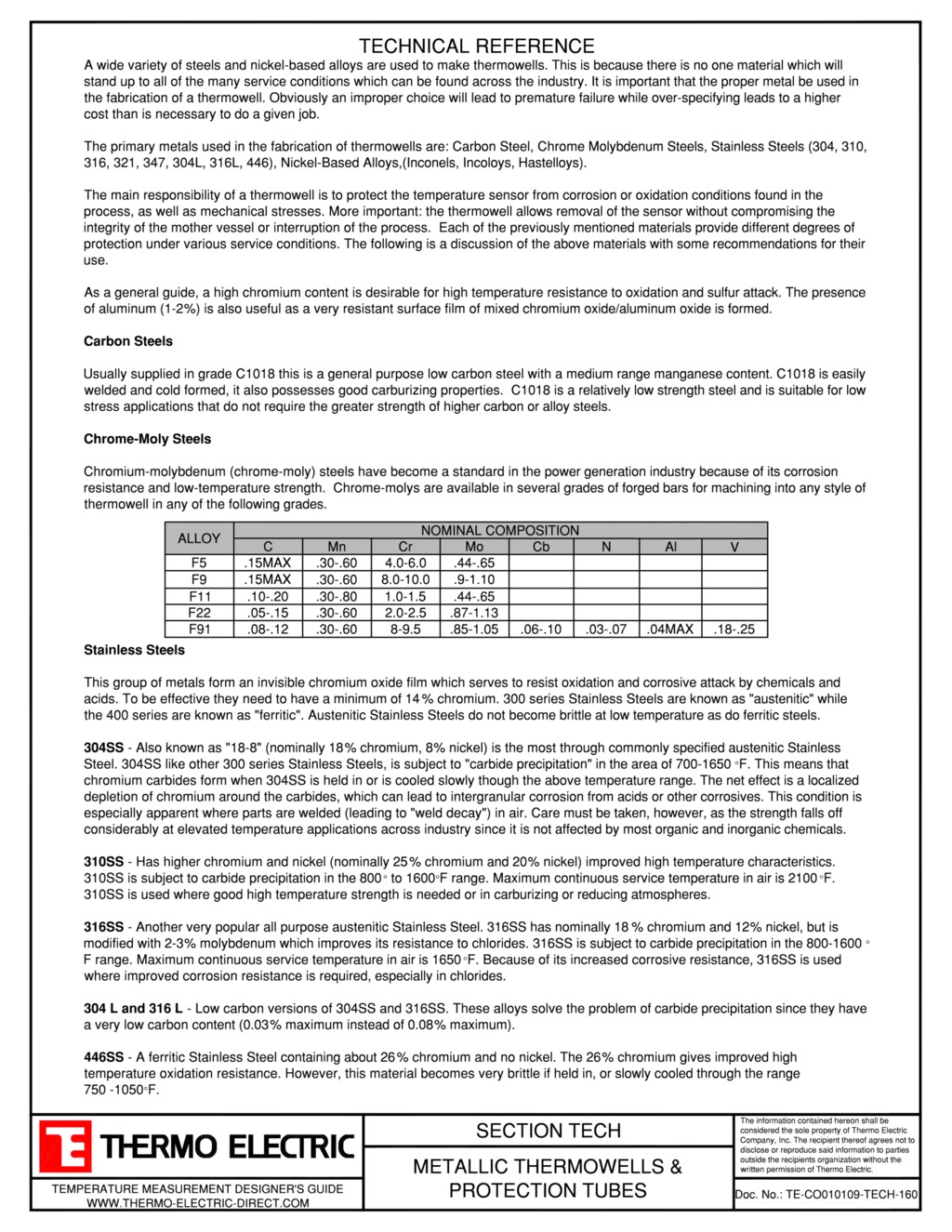

17. Metallic Thermowells & Protection Tubes (Page 1)
18. Metallic Thermowells & Protection Tubes (Page 2)

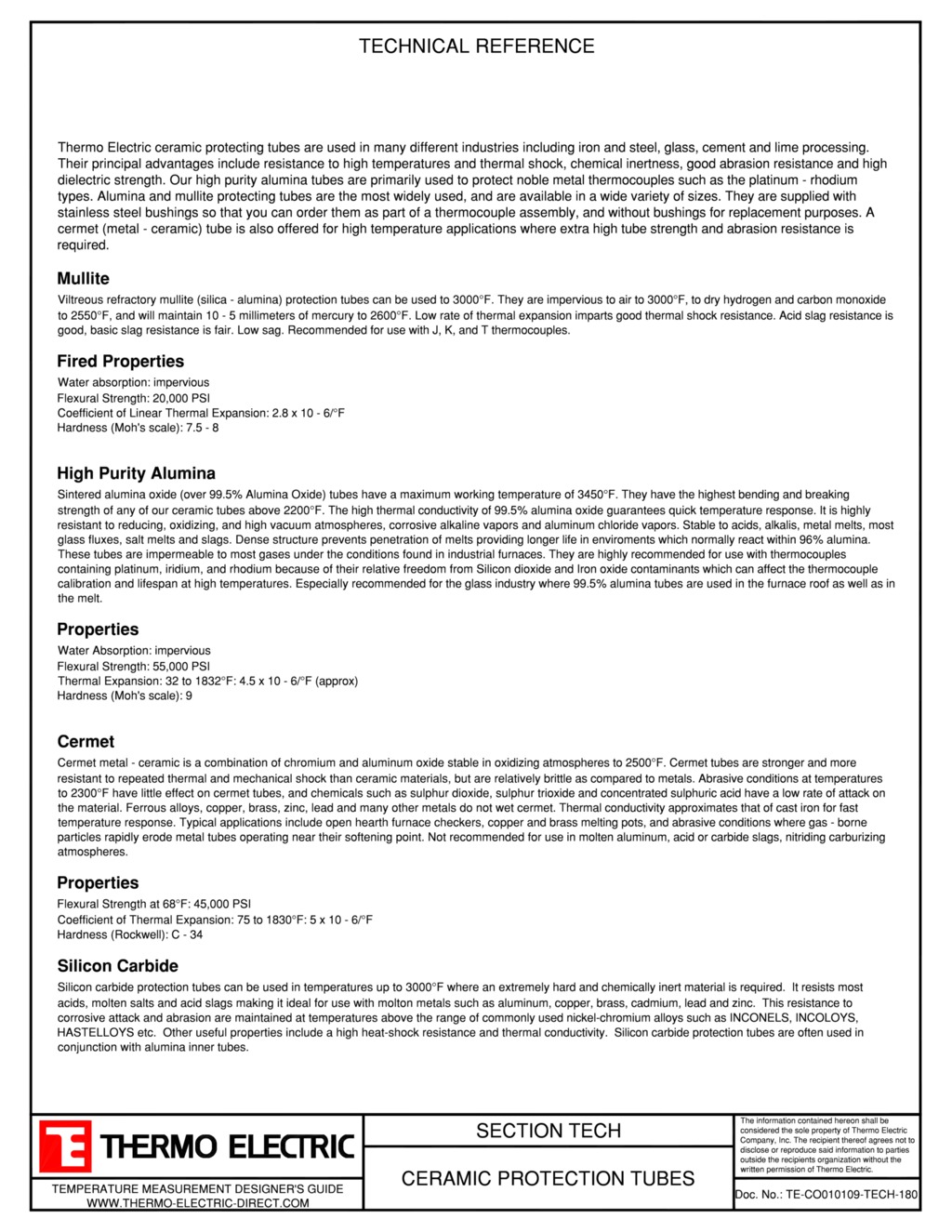

19. Ceramic Protection Tubes
20. How to Select Thermowells

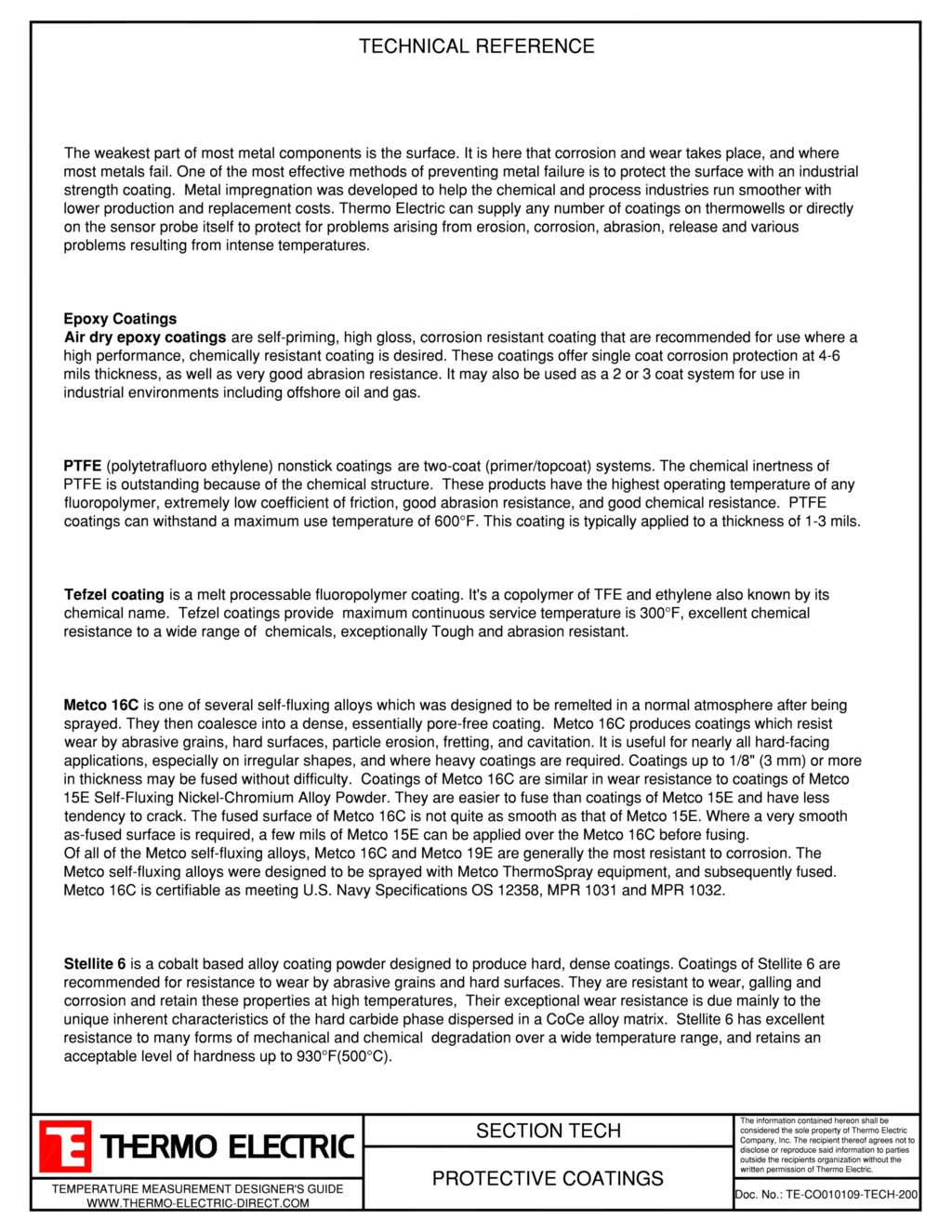

21. Protective Coatings
22. Thermowell Material Selection Guide (Page 1)
23. Thermowell Material Selection Guide (Page 2)

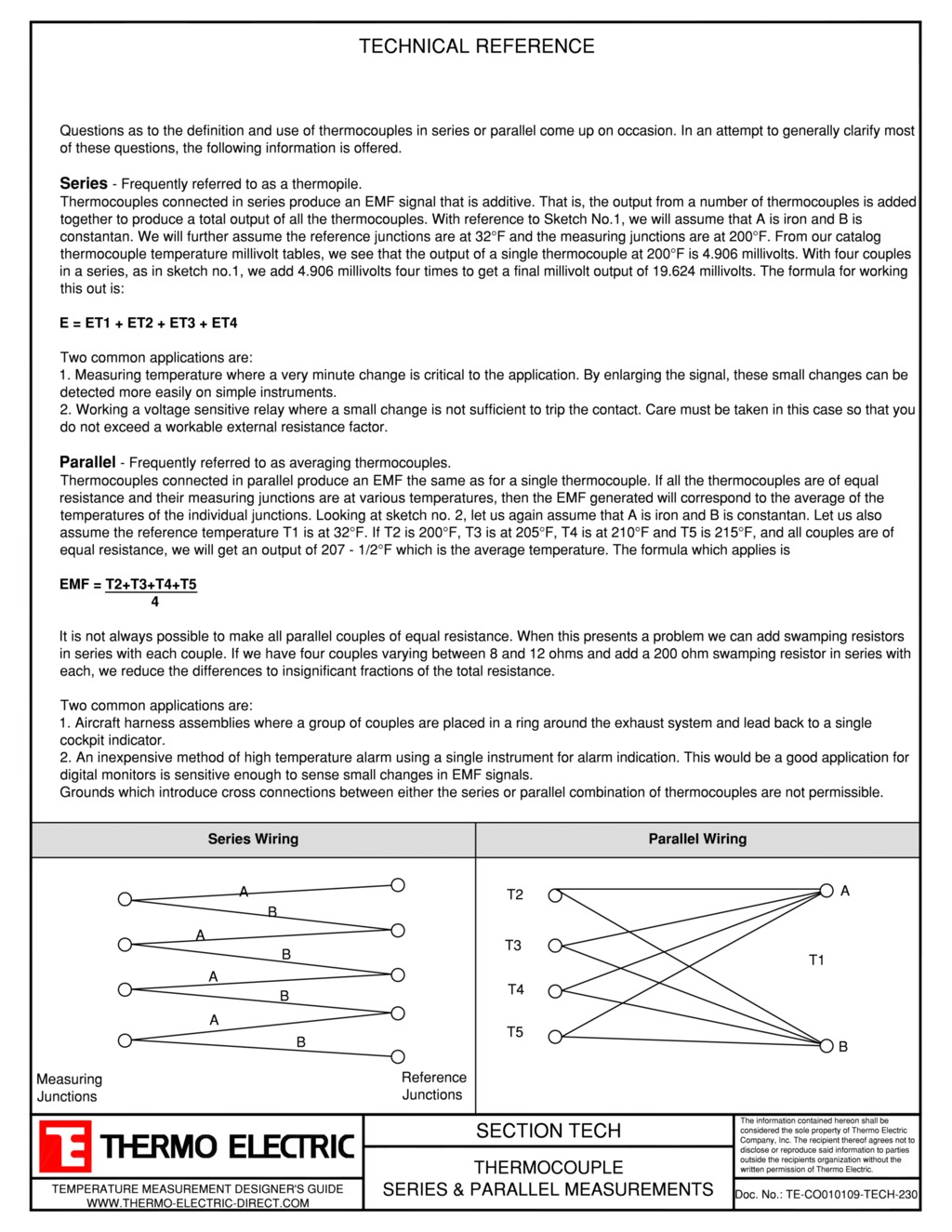

24. Thermocouple Series & Parallel Measurements
25. Noise Interference
Technical Reference (PAGE 2)
